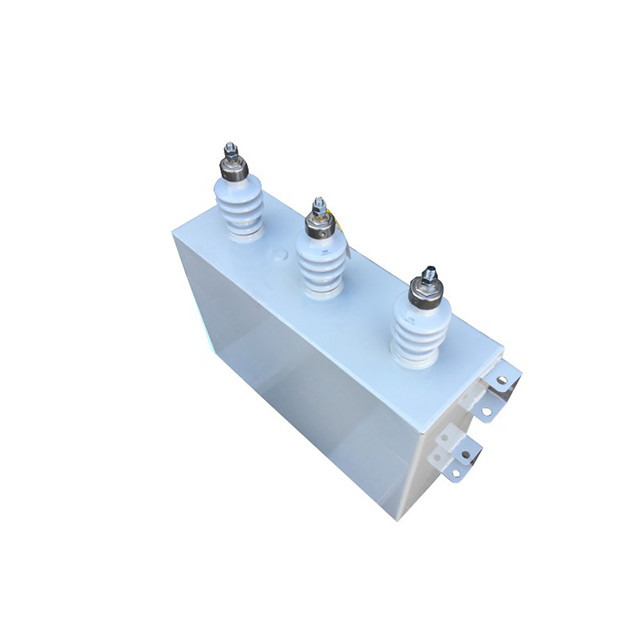

45 kvar Power Capacitor Bank Power Capacitor 3-phase Capacitors for Power Factors Units

Basic Information
Place of Origin: CHINA
Brand Name: HERONG ELECTRIC
Certification: ISO9001
Model Number: BAM11-45-3W
Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Export standard packing
Delivery Time: 30 work days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000000KVAR/YEAR
Rated Frequency: 50Hz;60Hz Protection Method: Internal Fuse Or External Fuse
Number Of Phases: Three-phase Capacitance Deviation: -3%~+3%
Package: Export Standard Packing Material: Stainless Steel
Capacity: 45kvar

High Voltage Shunt Power Capacitor BAM11-45-3W,High Voltage Capacitor Bank

1.Overview of High Voltage Shunt Power Capacitor BAM11-45-3W,High Voltage Capacitor Bank

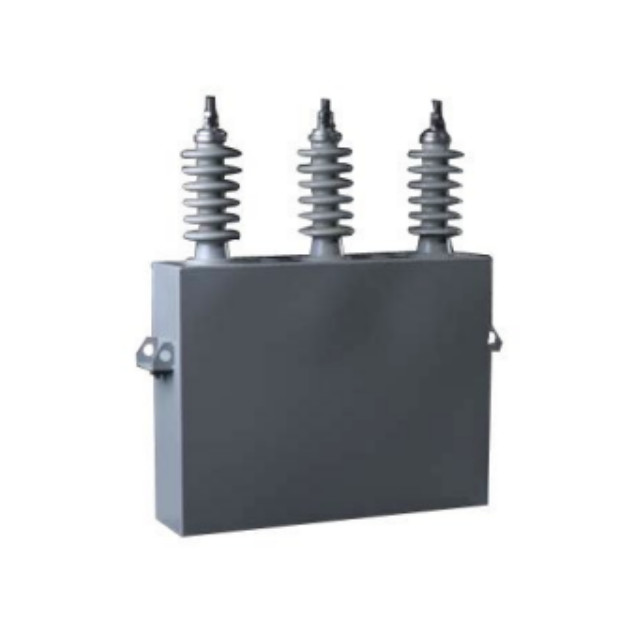

      Medium voltage shunt capacitor/High voltage shunt capacitor is composed of a pack, a case, outlet porcelain busing, etc. The two sides of stainless steel case are welded with hanging brackets for installation, and one hanging bracket is equipped with a grounding bolt. In order to adapt to various voltages, the pack is composed of several small elements connected in parallel and series. The capacitor is equipped with a discharge resistor

2. Function of High Voltage Shunt Power Capacitor BAM11-45-3W,High Voltage Capacitor Bank

       Middle voltage shunt capacitor/High voltage shunt capacitor are suitable for 50Hz or 60Hz AC power systems to improve the power factor of the power system, reduce line losses, improve the quality of the power supply voltage, and increase the active output of the transformer.

Rated voltage

11KV

Special specifications can be negotiated .

Rated frequency 50Hz;60Hz
Rated Capacity 45kvar
Insulation level 38/95kV, 70/150kV
Protection method Internal fuse or external fuse
Number of phases  three-phase
Capacitance deviation -3%~+5%
Package Export  packing
Loss tangent value (tanδ) ≤0.0002
Discharge resistance The capacitor is equipped with a discharging resistor. After being disconnected from the grid, the voltage on the terminal can drop below 50V within 5 minutes

3. Main features of High Voltage Shunt Power Capacitor BAM11-45-3W,High Voltage Capacitor Bank

 4. Applicable standard of High Voltage Shunt Power Capacitor BAM11-45-3W,High Voltage Capacitor Bank

    IEC60871 or equivalent

5. Working Conditions

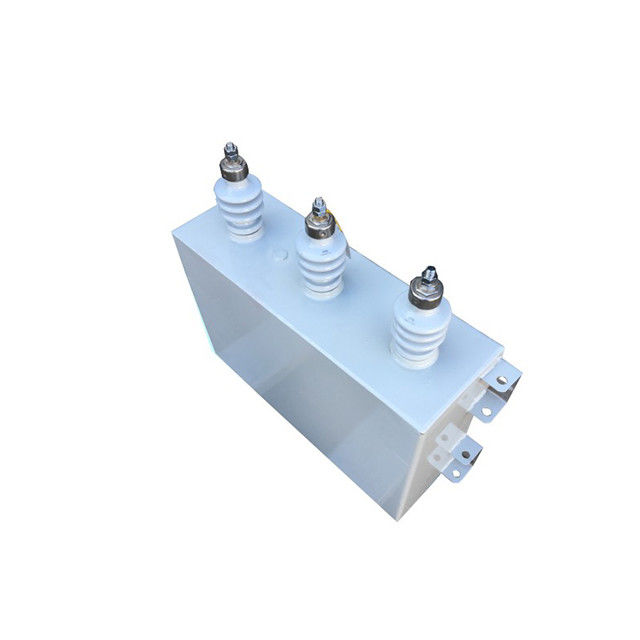

45 kvar Power Capacitor Bank Power Capacitor 3-phase Capacitors for Power Factors Units 0
